2250
|
|

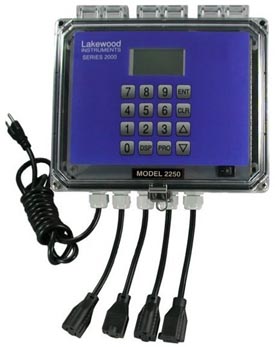

LONWORKS Technology-based cycle/sample or continuous blowdown conductivity controller. Range is 0-8,000 µS, has HIGH/LOW alarms, water meter inputs and chemical feed relays. Requires SR2 or SR4, below, and PL5 or PL6 is recommended. (No power cord or outlets.)
|
|
CONTROLLER OPTIONS (optional, select one or more)
|
|
-35L
|
|
Two 4-20 mA output configurable for conductivity remote data acquisition.
|
|
-RS2L
|
|
Communications node with LRWS program. Requires -RTC.
|
|
-RTC
|
|
Schedule feed timer with 28-day programmable clock for selectable relays. Required for operation of -RS2L.
|
|
LANGUAGE OPTIONS (optional, choose one, English and Spanish Standard)
|
|
-EF
|
|
English and French.
|
|
-EG
|
|
English and German.
|
|
SENSOR OPTIONS (recommended, select one below)
|
|
SR2
|
|
Boiler water sensor, 3/4 inch NPT, and elbow.
Rated to 486ºF @ 600 psi (252ºC @ 41.4 bar). This sensor cannot be used after a sample cooler.
|
|
SR4
|
|
4-electrode sensor, 3/4 inch NPT. Rated to 392ºF @ 250 psi (200ºC @17.2 bar).
|
|
PLUMBING (recommended, select one below)
|
|
PL5
|
|
Plumbing for cycle/sample assembly 1/2 inch (1/8 & 1/16 orifice plates and union).
|
|
PL6
|
|
Plumbing for continuous sample assembly, 1/2 inch (1/8 & 1/16 orifice plates & union).
|
|
PL575
|
|
Plumbing for cycle/sample assembly 3/4 inch (1/8 & 1/16 orifice plates and union).
|
|
PL675
|
|
Plumbing for continuous sample assembly 3/4 inch (1/8 & 1/16 orifice plates & union).
|
|
GV
|
|
1/2 inch forged globe valve for flow metering instead of an orifice plate and union.
|
|
Note: Two GV options are required for continuous blowdown and one for cycle/sample.
|
|
MOUNTING OPTIONS (optional, select one only)
|
|
PM
|
|
Panel mount 6 1/4 inch square cutout.
|
|
BM
|
|
Bracket for pipe mounting.
|
|
SOFTWARE
|
|
LRWS
|
|
Windows-based software program for computer to communicate with 2000 Series Controllers.
|
|
BLOWDOWN VALVE OPTIONS (optional, select one only)
|
|
MBV1
|
|
Motorized 1/2 inch blowdown valve with 1036 actuator;
rated to 250 psi @ 400ºF (17.2 bar @ 204ºC).
|
|
MBV2
|
|
Motorized 3/4 inch blowdown valve with 1036 actuator;
rated to 250 psi @ 400ºF (17.2 bar @ 204ºC).
|
|
MBV3
|
|
High pressure motorized 1/2 inch blowdown valve, with 1275 actuator
rated to 600 psi @ 550ºF (41.4 bar @ 288ºC).
|
|
MBV4
|
|
High pressure motorized 3/4 inch blowdown valve, with 1275 actuator
rated to 600 psi @ 550ºF (41.4 bar @ 288ºC).
|
|
PV4
|
|
Pneumatic high pressure 1/2 inch blowdown valve, with 1034 actuator
rated to 600 psi @ 486ºF (41.4 bar @ 288ºC).
|
LONWORKS® is the latest in microprocessor technology that gives the user the highest level of application flexibilty. A large graphic screen, multiple inputs and very easy setup, with easy field upgrade characterize this new technology.
