Star Tank System with C-1500N Diaphragm Pump
Pump From Blue White Industries

The Star System is equipped with the C-1500N model of your choice – Standard or Deluxe.

  • Three Tank capacities to chose from: 7 gallon, 15 gallon, or 30 gallon.

  • Polyethylene tank with U.V. inhibitors for sunlight protection.

  • The tank has extra heavy wall thickness for stability.

  • Lid positions include open, closed, or vent.

  • Convenient rectangular shape.

  • Flooded suction assists in priming.

  • Raised off the floor for easy wash down

  • Includes flow indicator and all necessary accessories.



View C-1500N Pump Options Here

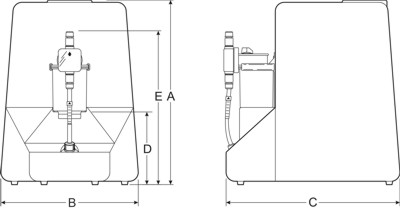

DIM "A" DIM "B" DIM "C" DIM "D" DIM "E" Ship Weight*
7 Gallon

17.5 (44.5)

12.0 (30.5) 16.0 (41.0) 7.8 (19.7) 17.0 (43.0) 19 LBS (9 KGS)
15 Gallon

22.0 (56.0)

15.0 (38.0) 19.5 (50.0) 7.8 (19.7) 17.0 (43.0) 28 LBS (13 KGS)
30 Gallon

27.0 (69.0)

20.0 (51.0) 24.0 (61.0) 7.8 (19.7) 17.0 (43.0) 34 LBS (16 KGS)

Dimensions = Inch (cm)
*Shipping weight includes the entire Star System with C-1500N pump.


Tech. Data Sheet (PDF) (PN 85000-047)
Instruction Manual (PDF) (PN 80000-213)
