 Micro-Flo - Flow Verification Sensor (FVS)
Detect a clogged injector. Detect an empty chemical supply tank. Detect a lost prime condition. No special connectors to buy. No calibration required. Six flow ranges available. Refer to Data Sheet. Easy three wire connection made in the pumps junction box.
Flow verification Sensor installs directly to Blue-White pump model series:
| Max. Working pressure: |
PVC lens 130 psig (9 bar) @ 70ºF (21ºC)
PVDF lens 150 psig (10 bar) @ 70ºF (21ºC) |
| Max. Fluid Temperature: |
PVC lens, F/NPT connectors 130ºF (54ºC) @ 0 psig
PVDF lens, tubing connectors 200ºF (93ºC) @ 0 psig |
| Full Scale Accuracy: |
+/- 6% |
| Sensor/ Paddle / Axel Material: |
PVDF |
| Connector Material: |
F/NPT connections PVC
M/NPT connections PVC
Hose barb connections PVC
Tubing connectors PVDF (3/8"), Polypro (1/4") |
| Viewing Lens Material Option: |
Clear see through: PVC
|
| O-Ring Seals: |
FKM (Optional EP) |
| Approx. Shipping Weight: |
1 lb. (.45 Kg) |
Dimensions

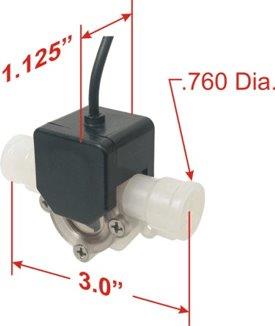

FVS without Fittings
- Flow can go either direction
- Overall height dimension = 2.125"

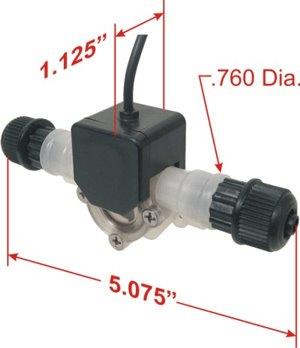

FVS with 3/8"Compression Tube Fittings
- For 3/8" tube connection
- Flow can go either direction
- PVDF (Kynar) tube fittings
- Overall height dimension = 2.125"

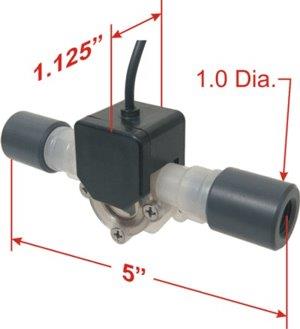

FVS with 1/4" Female NPT Fittings
- For 1/4" NPT connections
- Flow can go either direction
- PVC fittings
- Overall height dimension = 2.125"
Literature Downloads
Tech. Data Sheet (PDF) (PN 85000-061) Download
Instruction Manual (PDF) (PN 80000-402) Download
Wiring Instructions (PDF) (PN 81000-311)
|
