Injection Fittings

• Function: Prevents backflow from a treated line

• Installation Location: Discharge line (injection point)

• For Use With: 1/4" and 3/8" O.D. tubing


The Injection Fittings are provided as standard on all Blue-White diaphragm and peristaltic metering pumps.

1/4" and 1/2" Male NPT for pipe installation.

Available tubing connection sizes:

• 1/4" tube

• 3/8" tube

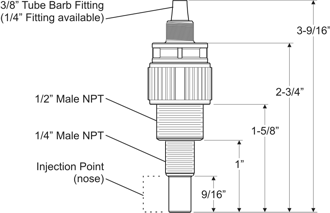

Dimensions

Installation

The Injection Fitting is designed to install directly into either 1/4" or 1/2" female pipe threads (NPT).

You can trim the injection point (nose) if needed.

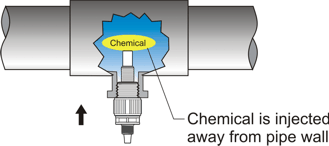

The nose section is designed to inject the chemical away from the wall of your pipe.

We do offer another Injector Fitting for smaller pipe sizes (such as 1/2? and 1/4?). This fitting does not have the same length at the injection point (nose).

Two Installation Options:

Install the Injection Fitting directly into a tee fitting

• The solution must inject directly into the flow stream.

• Use PTFE® thread sealing tape on the pipe threads of the Injection Fitting.

• This illustration shows the Injection Fitting installed in a tee fitting using the 1/2" threads.

Install Injection Fitting directly into pipe

• Drill the correct size hole and then tap the hole for 1/4" or 1/2" NPT.

• Use PTFE® thread sealing tape on the pipe threads of the Injection Fitting.

• This illustration shows the Injection Fitting installed directly into pipe using the 1/4" threads.
