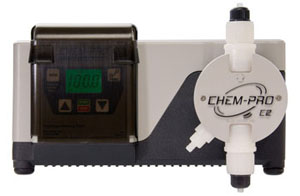

 Chem-Pro® C2 Diaphragm Pump
Max feed rate: 15 GPH / 55 LPH Max pressure: 175 PSI / 12 bar 166 RPM (Max strokes per minute) Variable speed, Smooth motor driven chemical feed Nema 4X washdown / IP 66 Back Lit LCD display Priming / Degassing Valve – Built-in Leak Detection – Built-in Diaphragm Failure Detection (DFD) Exclusive Diaflex® Single Layer PVDF diaphragm.
Benefits of a Diaphragm Pump:
Capable of high pressures and high volume outputs. Non-loss motion variable speed DC motor is powerful, quiet and energy efficient
Capabilities:
Communication & Interface:
SCADA ready 5-30V DC open collector output loop closes while motor is energized. Profibus DPV1, Profinet RT I/O, Industrial Ethernet/IP, Modbus RTU and Modbus TCP available Signal inputs include: 4-20mA, pulse inputs, and Remote start/stop Signal outputs include: Relay (3 amp), open collector, 4-20mA (optional) Upgradeable firmware Large, intuitive control-pad Backlit LCD displays motor speed, input signal values, service and alarm status. Includes Diaphragm Failure Detection (DFD) system. Compatible with Blue-White’s Flow Verification Sensor (FVS) system Alarm relay monitors the DFD system and the FVS system.
Superior Engineered Design:
Protective LCD snap-on cover, (UV, in field wear and tear) Large single piece junction box with terminal block connectors inside Large PVDF, Ceramic, TFE/P double ball check valves without metal springs. Priming and degassing valve built into the pump head. Exclusive Diaflex™ Single Layer PVDF diaphragm. NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure.
Patents Pending:
| Max. working pressure: |
175 psig (12 bar) |
| Max. fluid temperature: |
130ºF (54ºC) |
| Max. ambient temperature: |
14 to 110ºF (-10 to 46ºC ) |
| Maximum viscosity: |
1,000 Centipoise |
| Maximum suction lift: |
15 ft. Water, 0 psig (4.5 m, 0 bar) |
| Operating Voltage: |
115VAC/60Hz, 1ph (1.5 Amp Maximum)
230VAC/60Hz, 1ph (0.7 Amp Maximum)
220VAC/50Hz, 1ph (1.0 Amp Maximum)
240VAC/50Hz, 1ph (1.0 Amp Maximum) |
| Power Cord Options: |
115V60Hz = NEMA 5/15 (USA)
230V60Hz = NEMA 6/15 (USA)
220V50Hz = CEE 7/VII (EU)
240V50Hz = AS 3112 (Australia/New Zealand) |
| Duty cycle: |
Continuous |
| Accuracy: |
|
| Motor speed adjustment resolution: |
0.1% increments |
| Display: |
Backlit LCD, UV resistant |
| Keypad: |
Positive action tactile switch keypad |
| Enclosure: |
NEMA 4X (IP66), Polyester powder coated aluminum. |
| Product weight: |
24lb. (10.9 Kg) |
Literature Download
Instruction Manual PDF – C2V & C3V (PDF) (80000-516)
Instruction Manual PDF – C2F & C3F (PDF) (80000-514)
Technical Data Sheet (PDF) (85000-096)
DiaFlex® Retro-Fit Kit Information (PDF) (81000-363)
Case Study Farming Application
Communication Protocols
ETHERNET IP (PDF) (80000-533)
PROFIBUS (PDF) (80000-536)
PROFINET (PDF) (80000-537)
MODBUS RTU (PDF) (80000-531)
MODBUS TCP (PDF) (80000-532)
|
